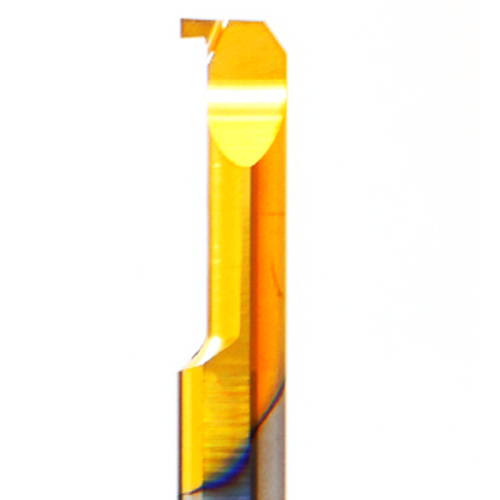

MGR 8 B1.0 L22 BXC
Tool; 8 mm Shank Dia. × 1.02 mm CW × 63.5 mm OAL ; Carbide ; Right Hand ; TiN ; BXC
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | GROOVING |
| Cutting Width (CW) | 1.02 mm | Style | TINY TOOLS |
| Overall Length (OAL) | 63.5 mm | Minimum Bore Diameter (DMIN) | 8.13 mm |
| Cutting Direction (HAND) | Right Hand | Axial Groove Max. Dia Limit (D1MAX) | 3.81 mm |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN | Insert Edge Length (INSL) | 22.1 mm |
| Grade | BXC | Measurement Type | Metric |
| Applicable Material | | Stainless Steel | | Size | H8 |
| Cutting Position | Internal |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.088
