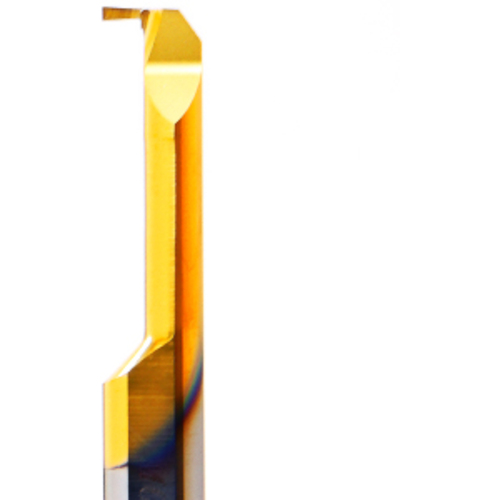

MGR 7 B1.0 L22 BMK
Tool; 7 mm Shank Dia. × 1.02 mm CW × 60.96 mm OAL ; Carbide ; Right Hand ; BMK
| Connection Diameter Machine Side (DCONMS) | 7 mm | Application | GROOVING |
| Cutting Width (CW) | 1.02 mm | Style | TINY TOOLS |
| Overall Length (OAL) | 60.96 mm | Minimum Bore Diameter (DMIN) | 7.11 mm |
| Cutting Direction (HAND) | Right Hand | Axial Groove Max. Dia Limit (D1MAX) | 3.3 mm |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Grade | BMK | Insert Edge Length (INSL) | 22.1 mm |
| Applicable Material | | General Purpose | | Measurement Type | Metric |
| Cutting Position | Internal | Size | H7 |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.057
