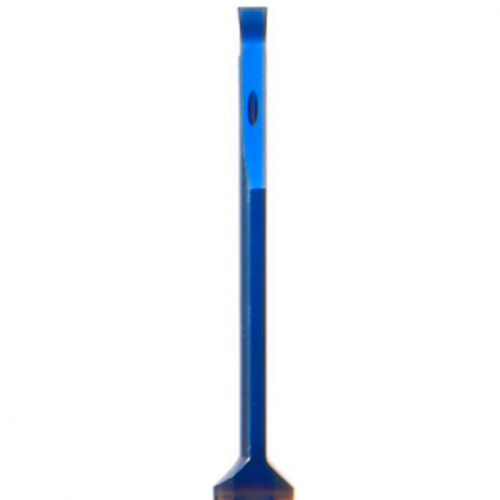

MVR 8 B3.0 L43 BMK
Tool; 8 mm Shank Dia. × 3.05 mm CW × 78.74 mm OAL × 0.2 mm Corner Radius ; Carbide ; Right Hand ; BMK
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | Internal |
| Corner Radius (RE) | 0.2 mm | Application | FACE GROOVING |
| Cutting Width (CW) | 3.05 mm | Style | TINY TOOLS |
| Overall Length (OAL) | 78.74 mm | Minimum Bore Diameter (DMIN) | 14.99 mm |
| Cutting Direction (HAND) | Right Hand | Axial Groove Max. Dia Limit (D1MAX) | 1.52 mm |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Grade | BMK | Measurement Type | Metric |
| Applicable Material | | General Purpose | | Size | H8 |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.088
