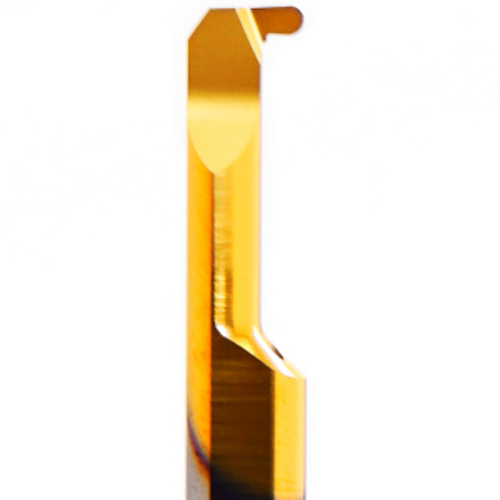

MKL 6 R 0.75 L15 BXC THRD INSERT
Tool; 6 mm Shank Dia. × 1.52 mm CW × 50.8 mm OAL × 0.76 mm Corner Radius ; Carbide ; Left Hand ; TiN ; BXC
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Position | Internal |
| Corner Radius (RE) | 0.76 mm | Application | FULL RADIUS GROOVING |
| Cutting Width (CW) | 1.52 mm | Style | TINY TOOLS |
| Overall Length (OAL) | 50.8 mm | Minimum Bore Diameter (DMIN) | 6.1 mm |
| Cutting Direction (HAND) | Left Hand | Axial Groove Max. Dia Limit (D1MAX) | 2.79 mm |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN | Insert Edge Length (INSL) | 14.99 mm |
| Grade | BXC | Measurement Type | Metric |
| Applicable Material | | Stainless Steel | | Size | H6 |
Product Features
| Country of Origin | Israel |
