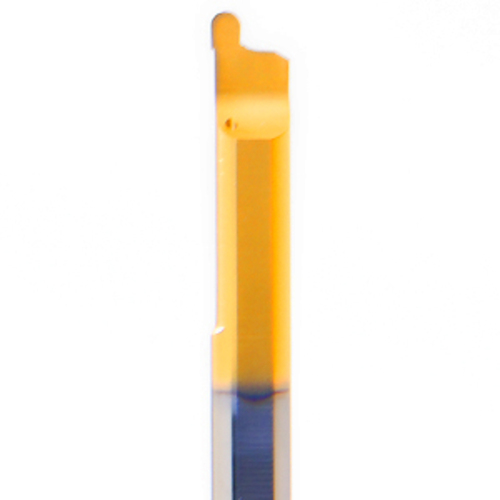

MZR 4 R0.75 L15
Tool; 4 mm Shank Dia. × 1.52 mm CW × 50.8 mm OAL × 0.76 mm Corner Radius ; Carbide ; Right Hand ; TiN ; BXC
| Connection Diameter Machine Side (DCONMS) | 4 mm | Cutting Position | Internal |
| Corner Radius (RE) | 0.76 mm | Application | FACE GROOVING |
| Cutting Width (CW) | 1.52 mm | Style | TINY TOOLS |
| Overall Length (OAL) | 50.8 mm | Minimum Bore Diameter (DMIN) | 5.08 mm |
| Cutting Direction (HAND) | Right Hand | Axial Groove Max. Dia Limit (D1MAX) | 2.03 mm |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN | Insert Edge Length (INSL) | 14.99 mm |
| Grade | BXC | Measurement Type | Metric |
| Applicable Material | | Stainless Steel | | Size | H4 |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0
