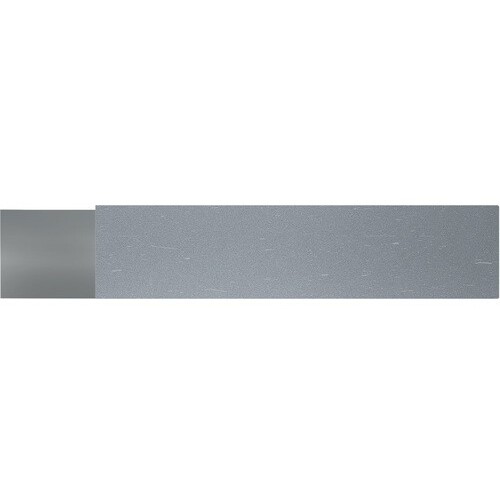

1/2 × 1/2 × 2-1/2″ OAL; RH; 3/16″ Tip - Brazed Tool Bit
Tool; 1/2″ Shank Dia. × 0.45″ CW × 3/8″ Max Depth × 2-1/2″ OAL ; Carbide ; Right Hand ; Uncoated ; Micrograin
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Style | Flat |
| Cutting Width (CW) | 0.45″ | Tool Type | Brazed Tool Bit |
| Cutting Depth Maximum (CDX) | 3/8″ | Height | 1/2″ |
| Overall Length (OAL) | 2-1/2″ | Blade Thickness | 3/16″ |
| Cutting Direction (HAND) | Right Hand | Front End Width (a) | 1/2″ |
| Cutting Edge Material | Carbide | Cutting Length | 3/8″ |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | Micrograin | Body Material | Steel |
Product Features
| Remarks | •Brazed Box-Turning Tools •For Box-Turning up to 5/8″ Depth per Pass | Country of Origin | USA |
Shipping Info
Package Length
2.63000
Package Width
.62000
Package Height
.63000
Package Weight
0.17
