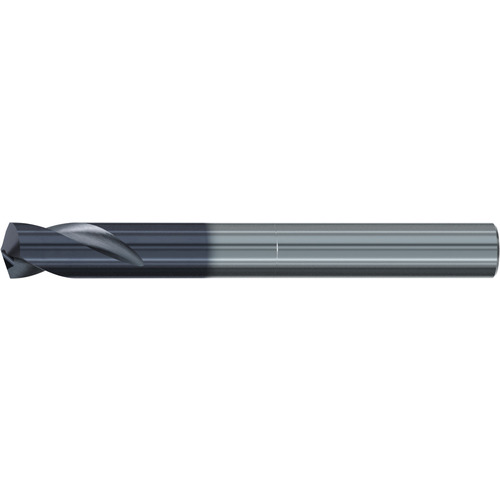

NC Spotting Drill; 3/8″ Dia. × 3″ OAL; 142 Degrees; Carbide; AlTiN; Series FUT3300
Drill Bit; 3/8″ Dia. × 3″ OAL × 3/8″ Shank Dia. ; 142 Degrees ; 2 FL ; Round Shank ; Carbide ; AlTiN ; Sub-Micro Grain ; Series EFUT3300
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ | Coating | AlTiN |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.375″ | Applicable Material | | Universal Materials | |
| Point Angle (SIG) | 142 Degrees | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 3″ | Tool Type | NC Spotting Drill |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Series/List # | EFUT3300 |
| Shank Type | Round | Grade | Sub-Micro Grain |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.1
