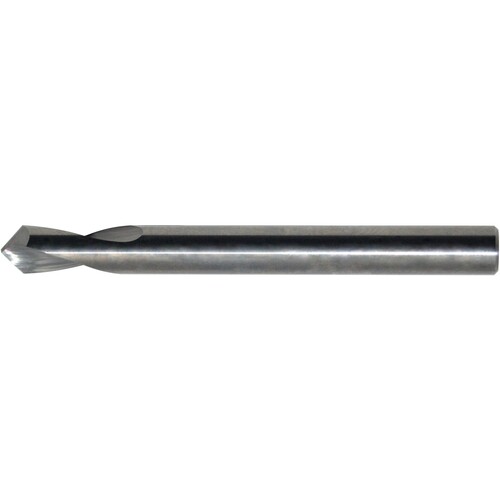

KEO 956 Solid Carbide NC Spotting Drill DIA-1/4 × 2-1/2 × 82DEG Uncoated
Drill Bit; 1/4″ Dia. × 2-1/2″ OAL × 1/4″ Shank Dia. ; 82 Degrees ; 2 FL ; Round Shank ; Carbide ; Bright
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Coating | Bright |
| Decimal Equivalent | 0.25″ | Cutting Edge Material | Carbide |
| Point Angle (SIG) | 82 Degrees | Flute Length | 3/8″ |
| Angle | 82 Degrees | Size | 1/4″ |
| Flute Count (NOF) | 2 | Measurement Type | Fractional |
| Overall Length (OAL) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Tool Type | NC Spotting Drill |
| Shank Type | Round | Cutting Length | 3/8″ |
Product Features
| Remarks | •Perfect for hard to reach areas •Narrow chisel edge for quick starting •Constant web which allows for resharpening without the need for web thinning | Country of Origin | USA |
Shipping Info
Package Length
2.50000
Package Width
.40000
Package Height
.40000
Package Weight
0.06
