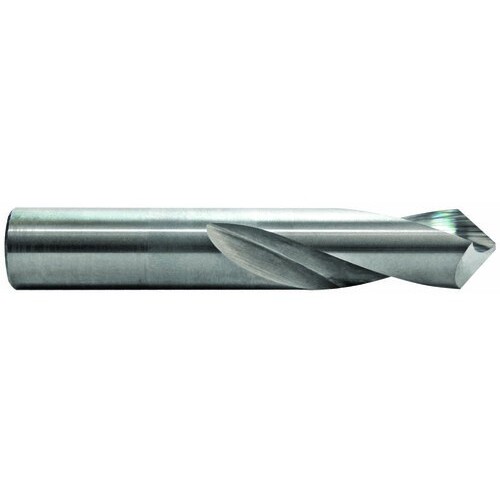

8 mm × 64 mm OAL 90 Degree Carbide NC Spotting Drill Uncoated
Drill Bit; 8 mm Dia. × 64 mm OAL ; 90 Degrees ; 2 FL ; Round Shank ; Carbide ; Uncoated
| Drill Bit Size / Cutting Diameter (DC) | 8 mm | Coating | Uncoated |
| Decimal Equivalent | 0.315″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8 mm | Flute Length | 26 mm |
| Point Angle (SIG) | 90 Degrees | Point Diameter (PDD) | 8 mm |
| Angle | 90 Degrees | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 21 Degrees | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Tool Type | NC Spotting Drill |
| Overall Length (OAL) | 64 mm | Cutting Length | 26 mm |
| Shank Type | Round |
Product Features
| Family Description | Alternate Manufacture # 40421 | Country of Origin | USA |
Shipping Info
Package Length
2.97000
Package Width
.37500
Package Height
.37500
Package Weight
.082
