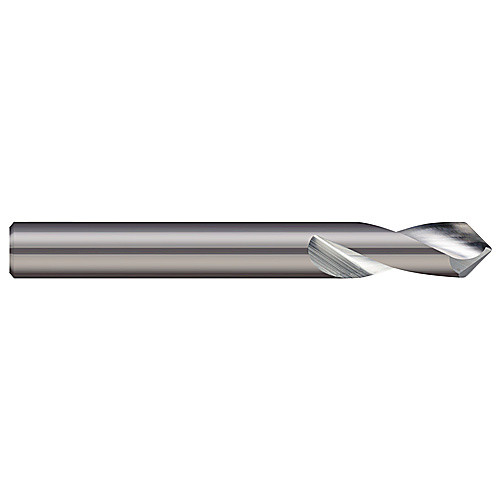

1/4 90DEG SPOT/CENTERING
Drill Bit; 1/4″ Dia. × 3/4″ LPR × 2-1/2″ OAL × 1/4″ Shank Dia. ; 90 Degrees ; Round Shank ; Carbide ; Uncoated
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Flute Length | 3/4″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Point Diameter (PDD) | 1/4″ |
| Decimal Equivalent | 0.25″ | Measurement Type | Inch |
| Point Angle (SIG) | 90 Degrees | Length Group | 3D |
| Angle | 90 Degrees | Cutting Direction (HAND) | Right Hand |
| Protruding Length (LPR) | 3/4″ | Tool Type | Spotting and Centering Drill |
| Overall Length (OAL) | 2-1/2″ | Cutting Length | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Body Material | Carbide |
| Shank Type | Round | Length Chip Flute (LCF) | 3/4″ |
| Coating | Uncoated | Single / Double End | Single End |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | •Solid Carbide Spotting & Centering Drills •82°, 90°, 100°, 120°Included Drill Point | Country of Origin | USA |
Shipping Info
Package Length
2.40000
Package Width
.40000
Package Height
.40000
Package Weight
0.054
