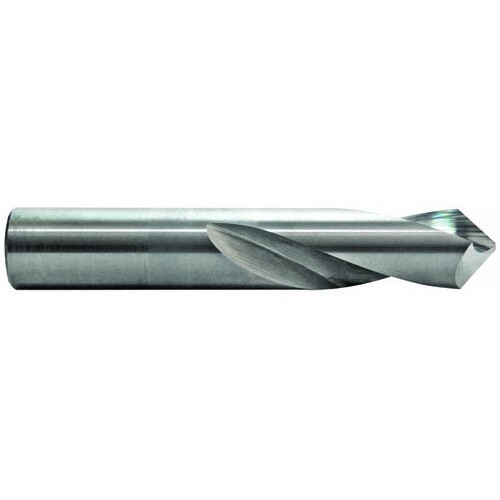

5/16″ × 2-1/2″ OAL 90 Degree Carbide NC Spotting Drill TiCN
Drill Bit; 5/16″ Dia. × 2-1/2″ OAL × 5/16″ Shank Dia. ; 90 Degrees ; 2 FL ; Round Shank ; Carbide ; TiCN ; Series Twister GP
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ | Coating | TiCN |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3125″ | Flute Length | 1″ |
| Point Angle (SIG) | 90 Degrees | Drill Min. Diameter | 0.3125″ |
| Angle | 90 Degrees | Point Diameter (PDD) | 5/16″ |
| Flute Helix Angle (FHA) | 21 Degrees | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2-1/2″ | Tool Type | NC Spotting Drill |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Cutting Length | 1″ |
| Shank Type | Round | Series/List # | Twister GP |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.08
