1/8 90DEG COB NC

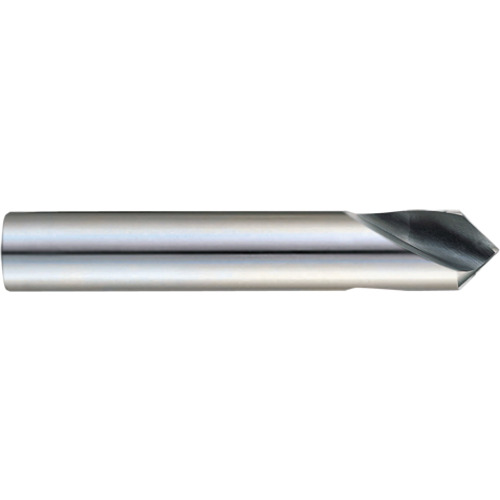

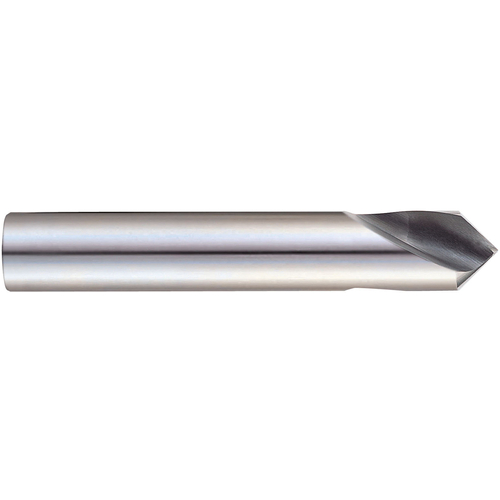

Drill Bit; 1/8″ Dia. × 1.93″ OAL × 1/8″ Shank Dia. ; 90 Degrees ; 2 FL ; HSSCo8 ; Uncoated ; Series D2N90
| Drill Bit Size / Cutting Diameter (DC) | 1/8″ | Cutting Edge Material | HSSCo8 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/8″ | Nose Length | 1/16″ |
| Decimal Equivalent | 0.125″ | Applicable Material | | Steel | |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.175 mm | Flute Length | 0.472″ |
| Point Angle (SIG) | 90 Degrees | Size | 1/8″ |
| Angle | 90 Degrees | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 1.93″ | Tool Type | NC Spotting Drill |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Series/List # | D2N90 |
| Coating | Uncoated |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.5
Package Height
0.375
Package Weight
0.01
