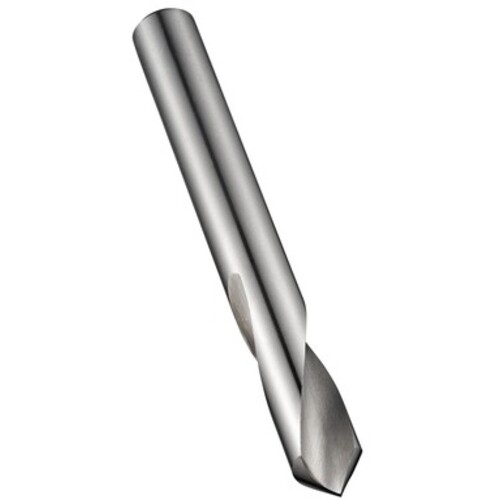

16.00X120 MM Dormer HSS Bright 90 - 120 Spotting Drill Short DIN 1897 E-code # A12216.0X120
Drill Bit; 16 mm Dia. × 115 mm OAL ; 90 Degrees ; Round Shank ; HSS ; Uncoated ; Series R123
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 16 mm | Application | Spotting Drills |
| Decimal Equivalent | 0.6299 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 16 mm | Flute Length | 40 mm |
| Point Angle (SIG) | 90 Degrees | Length Group | 1D | Short/Stub |
| Overall Length (OAL) | 115 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Tool Type | NC Spotting Drills |
| Coating | Uncoated | Cutting Length | 40 mm |
| Cutting Edge Material | HSS | Series/List # | R123 |
Product Features
| Family Description | E-code # A12216.0X120 | Country of Origin | Brazil |
Shipping Info
Package Weight
6.3
