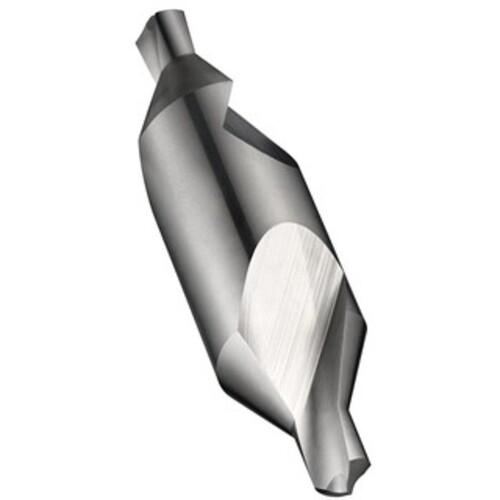

1.0X3.15 MM Dormer HSS Bright 118 Centre Drill - 60 Short Center 60 DIN 333A E-code # A2001.0X3.15
Drill Bit; 3.15 mm Dia. × 31 mm OAL ; 118 Degrees ; Round Shank ; HSS ; Uncoated ; Series R123
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 3.15 mm | Application | Centre Drills |
| Decimal Equivalent | 0.0394″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.15 mm | Flute Length | 1.7 mm |
| Point Angle (SIG) | 118 Degrees | Point Diameter (PDD) | 1 mm |
| Angle | 60 Degrees | Length Group | 1D | Short/Stub |
| Overall Length (OAL) | 31 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Tool Type | Center Drill |
| Coating | Uncoated | Series/List # | R123 |
| Cutting Edge Material | HSS |
Product Features
| Family Description | E-code # A2001.0X3.15 | Country of Origin | France |
Shipping Info
Package Weight
0.529
