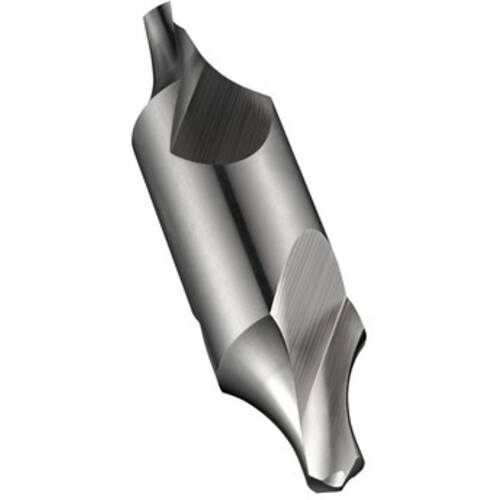

2.5X6.3 MM Dormer HSS Bright 118 Centre Drill - Radius Short Center radius form DIN 333R E-code # A2102.5X6.3
Drill Bit; 6.3 mm Dia. × 45 mm OAL ; 118 Degrees ; Round Shank ; HSS ; Uncoated ; Series A217
Additional Tariff Surcharge of 8 %
| Drill Bit Size / Cutting Diameter (DC) | 6.3 mm | Application | Centre Drills |
| Decimal Equivalent | 0.2480 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.3 mm | Flute Length | 6.8 mm |
| Point Angle (SIG) | 118 Degrees | Point Diameter (PDD) | 2.5 mm |
| Overall Length (OAL) | 45 mm | Length Group | 1D | Short/Stub |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Tool Type | Center Drill |
| Cutting Edge Material | HSS | Series/List # | A217 |
Product Features
| Family Description | E-code # A2102.5X6.3 | Country of Origin | France |
Shipping Info
Package Weight
0.343
