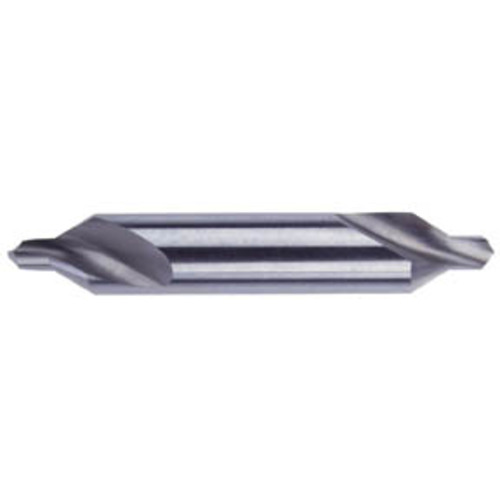

1495 #4.5 COMB DRL/CTSK
Drill Bit; 9/64″ Dia. × 0.17″ LPR × 2-1/2″ OAL × 3/8″ Shank Dia. ; 60 Degrees ; 2 FL ; HSS ; Uncoated ; Series 1495
| Style | Plain Type | Coating | Uncoated |
| Drill Bit Size / Cutting Diameter (DC) | 9/64″ | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/64″ | Size | #4.5 |
| Decimal Equivalent | 0.375″ | Point Diameter (PDD) | 3/8″ |
| Point Angle (SIG) | 60 Degrees | Measurement Type | Inch |
| Angle | 60 Degrees | Length Group | Standard |
| Protruding Length (LPR) | 0.17″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Tool Type | Combination Drill & Counter Sink |
| Overall Length (OAL) | 2-1/2″ | Series/List # | 1495 |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
Product Features
| Remarks | •Combined Drills and Countersinks •Often called center drills •Designed for drilling center holes in the ends of work pieces to be held between standard 60Deg centers. •Plain Type | Country of Origin | USA |
Shipping Info
Package Length
3.13000
Package Width
.38000
Package Height
.38000
Package Weight
0.064
