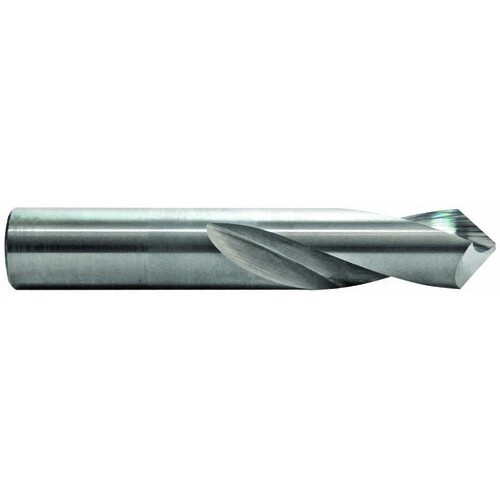

3/8 90DEG SPOTTING
Drill Bit; 3/8″ Dia. × 2-1/2″ OAL ; 90 Degrees ; Round Shank ; Carbide ; Uncoated
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.375″ | Flute Length | 1″ |
| Point Angle (SIG) | 90 Degrees | Drill Min. Diameter | 0.375″ |
| Angle | 90 Degrees | Point Diameter (PDD) | 3/8″ |
| Flute Helix Angle (FHA) | 21 Degrees | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Tool Type | NC Spotting Drill |
| Coating | Uncoated | Cutting Length | 1″ |
Product Features
| Family Description | Alternate Manufacture # 40425 | Country of Origin | USA |
| Remarks | •3X Diameter drill length •21° helix •Designed for accurate spotting on NC machines •Solid carbide construction, short lengths and no body clearance make this a very rigid tool •Can be used at high speeds and feeds, compatible with other carbide tooling. •Easy to repoint because there is no web taper |
Shipping Info
Package Length
3.00000
Package Width
.30000
Package Height
.50000
Package Weight
0.116
