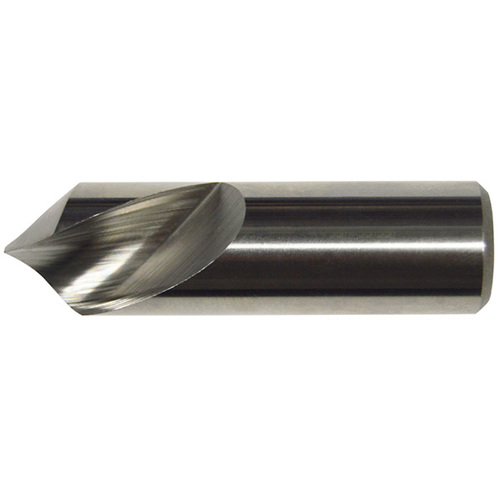

KEO 955 HSS Spotting Drill DIA-9/16 × 118DEG Left Hand Uncoated
Drill Bit; 9/16″ Dia. × 2″ OAL × 9/16″ Shank Dia. ; 118 Degrees ; Round Shank ; HSS ; Bright
| Drill Bit Size / Cutting Diameter (DC) | 9/16″ | Cutting Edge Material | HSS |
| Decimal Equivalent | 0.5625″ | Flute Length | 1″ |
| Point Angle (SIG) | 118 Degrees | Size | 9/16″ |
| Angle | 118 Degrees | Point Diameter (PDD) | 9/16″ |
| Overall Length (OAL) | 2″ | Measurement Type | Fractional |
| Connection Diameter Machine Side (DCONMS) | 9/16″ | Cutting Direction (HAND) | Left Hand |
| Shank Type | Round | Tool Type | Spotting Drill |
| Coating | Bright | Cutting Length | 1″ |
Product Features
| Remarks | •Spotting & Centering Drills •High Speed Steel •Prevent misalignment frequently caused by using regular drills for centering. These short drills can be chucked close to the point -ensuring accuracy and true starts. | Country of Origin | USA |
Shipping Info
Package Weight
0.1
