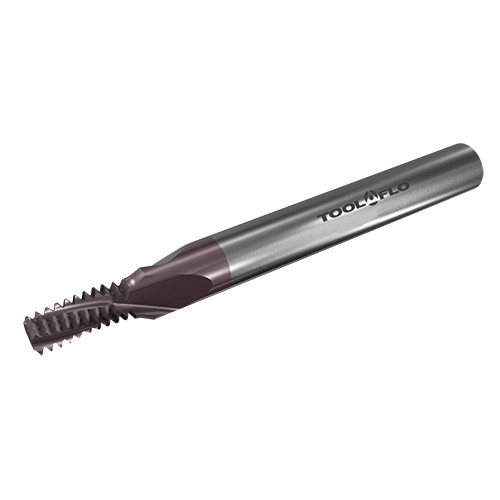

MTECH 0806D14 1.25ISO 222 AC22
| Thread Size | M8 | Application | | Internal Thread Milling | |
| Thread Pitch (TP) | 1.25 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 6 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 64 mm | Grade | AC22 |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 13.7 mm |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | Small Diameter Solid Carbide Internal ISO Profile Threading and Chamfering Endmills, for Hard Materials up to 62 HRC, High Temperature Alloys and Titanium Alloys | Country of Origin | Israel |
