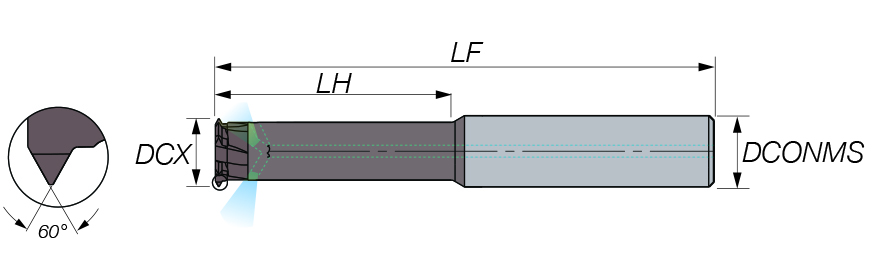

MTECI 1616E50 A60 AC22

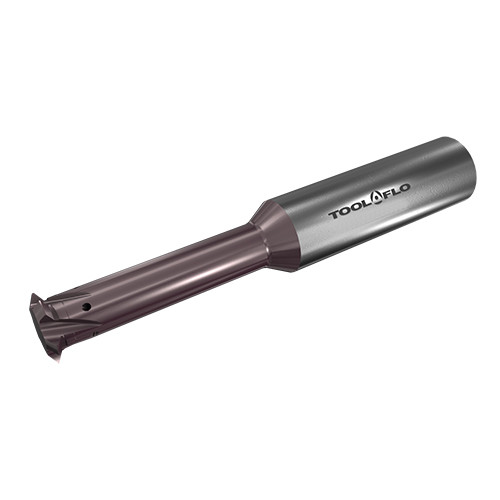

Thread Mill; 20 ; 0.63″ Shank Dia. × 3.976″ OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | 20 | Pitch TPI External (TPI Ext) | 15/8 Threads/" |
| Thread Standard | ISO | Pitch Internal | 2.0-3.0″ |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Pitch External | 1.75-2.5″ |
| Cutting Diameter (DC) | 0.63″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 39 mm | Cutting Position | BOTH |
| Overall Length (OAL) | 3.976″ | Usable Length (LU) | 1.968″ |
| Flute Count (NOF) | 5 | Series/List # | MTB |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
| Shank Type | Round | Grade | AC22 |
| Coating | TiAlN | Cutting Direction (HAND) | Left Hand|Right Hand |
| Application | | External Thread Milling | Internal Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
| Pitch TPI Internal (TPI Int) | 13-8 Threads/" | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | 60° Partial Profile Solid Carbide Thread Mills for Internal and External Threads | Country of Origin | Israel |
