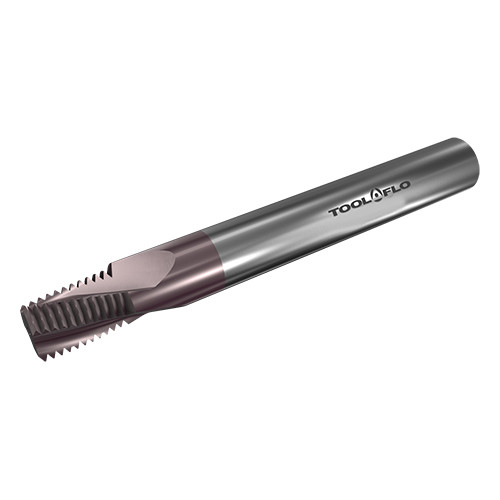

MTECB 0750D11 11.5NPS AC22
Thread Mill; 1 - 2 × 2.184 mm - 11.5 ; 3/4″ Shank Dia. × 4″ OAL ; Carbide ; TiAlN ; AC22 ; Series MTB

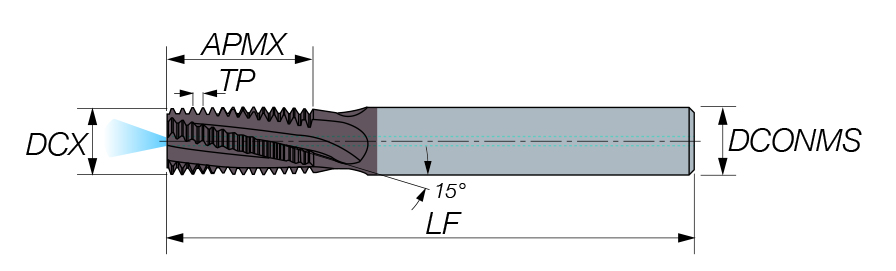

| Thread Size | 1 - 2 | Coating | TiAlN |
| Thread Pitch (TP) | 2.184 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Threads per Inch (TPI) | 11.5 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Cutting Position | BOTH |
| Cutting Diameter (DC) | 3/4″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 4″ | Grade | AC22 |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 1.17″ |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Thread Form Type (THFT) | NPS |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Holes for External or Internal NPS Thread Profile | Country of Origin | Israel |
