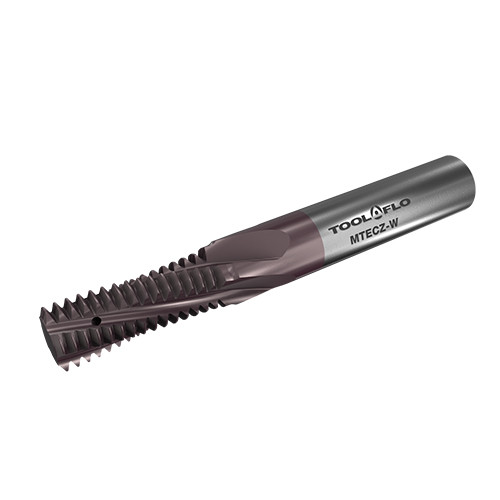

MTECZ 1616E26 14W AC22
| Thread Size | G1/2-7/8 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 14 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | ISO | Cutting Edge Material | Carbide |

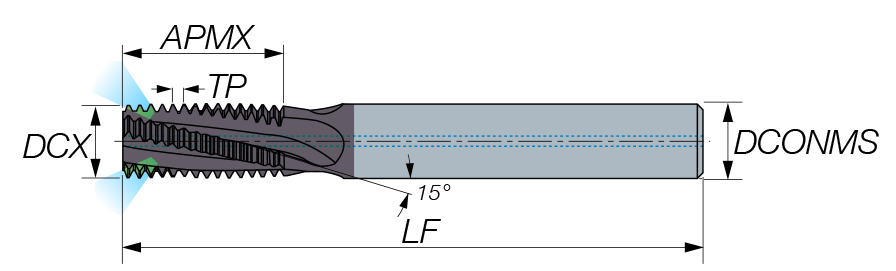

| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Position | BOTH |
| Cutting Diameter (DC) | 16 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 101 mm | Grade | AC22 |
| Flute Count (NOF) | 5 | Depth of Cut Maximum (APMX) | 26.3 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Form Type (THFT) | WH55 |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Holes Located in the Flutes, for Internal or External Whitworth Thread | Country of Origin | Israel |
