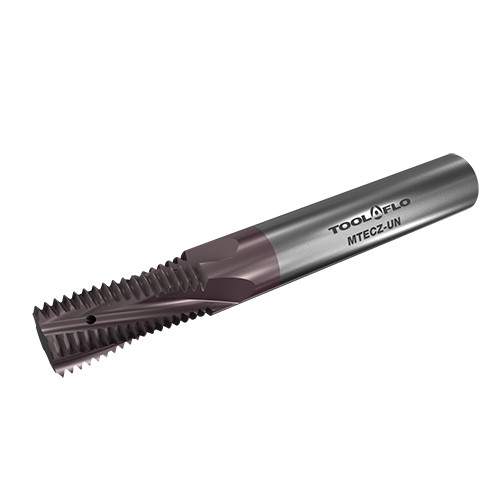

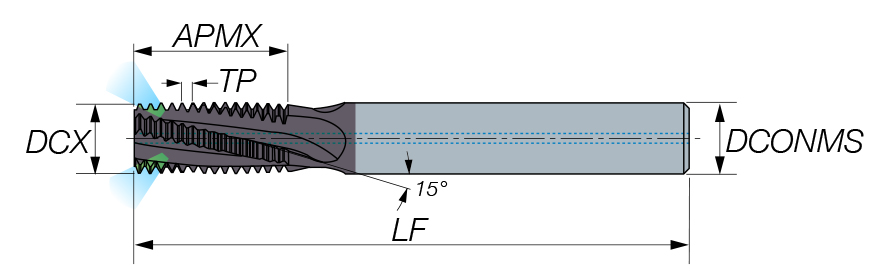

MTECZ 12113D26 18UN AC22
| Thread Size | - | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Pitch (TP) | 1.411 mm | Flute Helix Angle (FHA) | 15 Degrees |
| Threads per Inch (TPI) | 18 | Cutting Edge Material | Carbide |
| Thread Standard | ISO | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | MTB |
| Cutting Diameter (DC) | 11.3 mm | Measurement Type | Metric |
| Functional Length (LF) | 39 mm | Grade | AC22 |
| Overall Length (OAL) | 84 mm | Depth of Cut Maximum (APMX) | 26.1 mm |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
| Application | | Internal Thread Milling | |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Holes Located in the Flutes for Internal UN Thread Profile | Country of Origin | Israel |
Shipping Info
Package Weight
0.001
