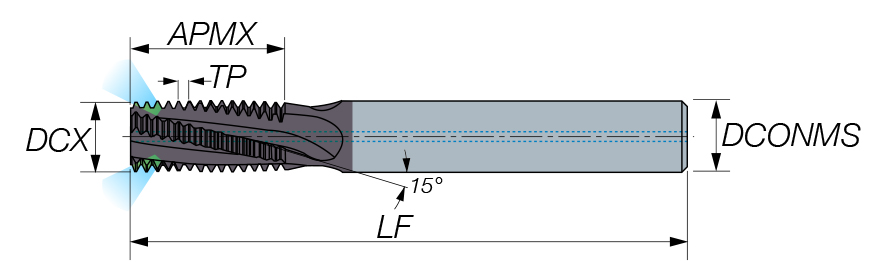

MTECZ 1010D16 19BSPT AC22
Thread Mill; RC1/4-3/8 × 1.337 mm ; 10 mm Shank Dia. × 73 mm OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Pitch (TP) | 1.337 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Threads per Inch (TPI) | 19 Threads/" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.394″ | Series/List # | MTB |
| Cutting Diameter (DC) | 0.394″ | Measurement Type | Inch |
| Functional Length (LF) | 39 mm | Grade | AC22 |
| Overall Length (OAL) | 2.874″ | Depth of Cut Maximum (APMX) | 0.6575″ |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | TiAlN | Thread Form Type (THFT) | BSPT55 |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Holes Located in the Flutes for Internal or External BSPT Thread Profile | Country of Origin | Israel |
Shipping Info
Package Weight
0.14
