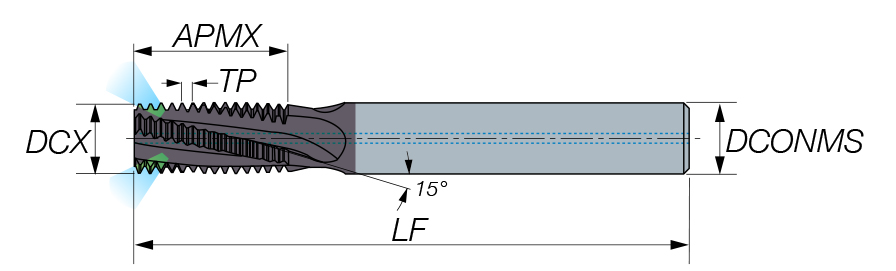

MTECZ 08067C16 16UN AC22
Thread Mill; 3/8″ × 1.588 mm - 16 Threads/" ; 0.315″ Shank Dia. × 2.52″ OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | 3/8″ | Application | | Internal Thread Milling | |
| Thread Pitch (TP) | 1.588 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 16 Threads/" | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Cutting Position | INT |
| Cutting Diameter (DC) | 0.264″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 2.52″ | Grade | AC22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 0.6575″ |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | Left Hand|Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Holes Located in the Flutes for Internal UN Thread Profile | Country of Origin | Israel |
Shipping Info
Package Weight
0.08
