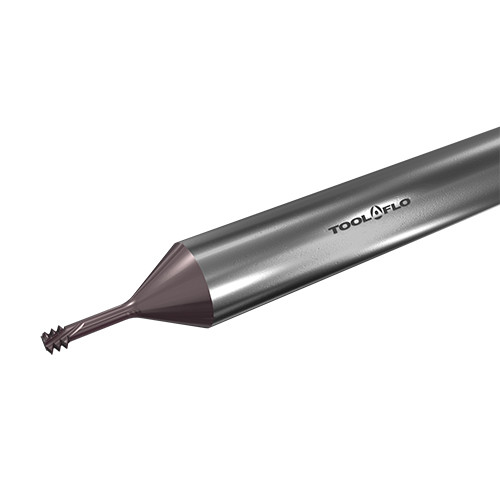

MTECSH 08078C231.5ISO ZA212
| Thread Size | - | Pitch TPI Internal (TPI Int) | - |
| Thread Pitch (TP) | 1.5 mm | Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | ISO | Pitch Internal | - mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 7.8 mm | Cutting Position | Internal |
| Functional Length (LF) | 39 mm | Usable Length (LU) | 23 mm |
| Overall Length (OAL) | 64 mm | Series/List # | MTB |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Grade | ZA212 |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand |
| Coating | TiAlN+ | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | M60 |
Product Features
| Family Description | Small Diameter Short Left-Hand Cut. Internal ISO Profile Threading Endmills for Hardened Steel | Country of Origin | Israel |
