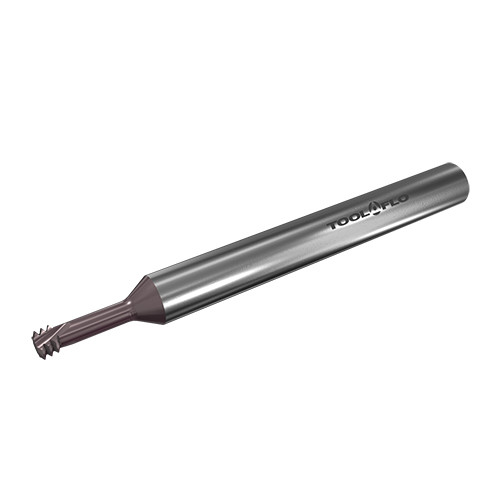

MTECSH 08067C22 16UN ZA212
| Thread Size | 3/8″ | Pitch TPI Internal (TPI Int) | - |
| Thread Pitch (TP) | 1.588 mm | Flute Helix Angle (FHA) | 0 Degrees |
| Threads per Inch (TPI) | 16 | Pitch Internal | - mm |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 6.7 mm | Usable Length (LU) | 22 mm |
| Functional Length (LF) | 39 mm | Series/List # | MTB |
| Overall Length (OAL) | 64 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | ZA212 |
| Coolant Supply Property (CSP) | External | Depth of Cut Maximum (APMX) | 4.07 mm |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand |
| Coating | TiAlN+ | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Small Diameter Short Left-Hand Cut Solid Carbide UN Profile Threading Endmills for Hardened Steel | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
