MTECBA08048C14 20UN-C C22

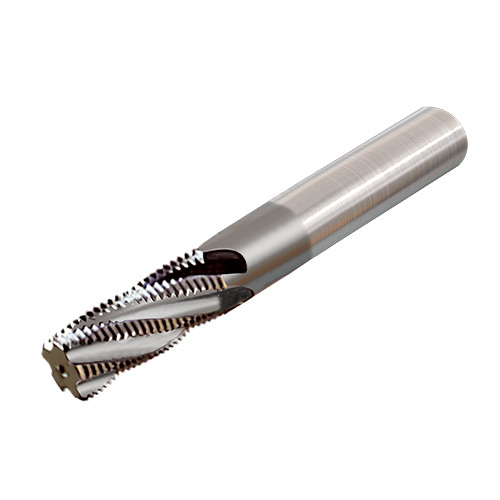

Thread Mill; - x 1.27 mm - 20 ; 8 mm Shank Dia. × 64 mm OAL ; Carbide ; Uncoated ; C22 ; Series MTB
| Thread Size | - | Coating | Uncoated |
| Thread Pitch (TP) | 1.27 mm | Application | | Internal Thread Milling | |
| Threads per Inch (TPI) | 20 | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 4.8 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 64 mm | Grade | C22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 15.6 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Solid Carbide Threading Endmills with Coolant Hole for Internal UN Thread Profile on Aluminum Materials | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
