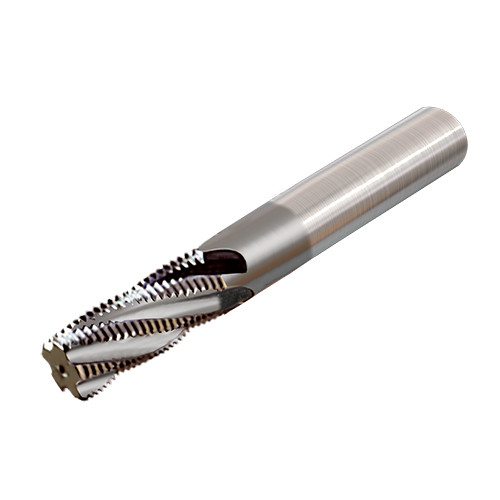

MTECBA 03024C6 0.5ISO C22
| Thread Size | M3; M4 | Application | | Internal Thread Milling | |
| Thread Pitch (TP) | 0.5 mm | Applicable Material | | Stainless Steel | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 2.4 mm | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Metric |
| Overall Length (OAL) | 39 mm | Grade | C22 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 6.8 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Thread Form Type (THFT) | M60 |
| Coating | Uncoated |
Product Features
| Family Description | Solid Carbide Internal Threading Endmills with Coolant Hole for ISO Thread Profile on Aluminum Materials | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
