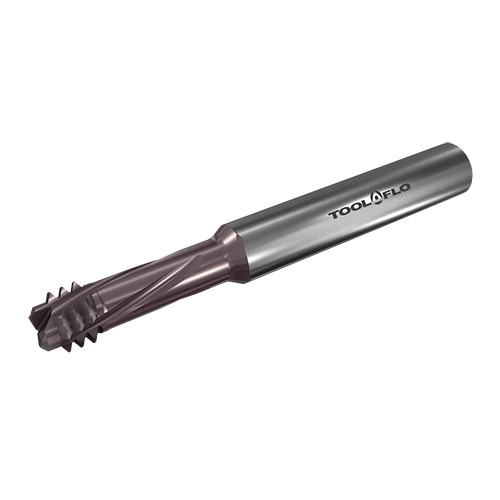

MTECD 08065D17 24UN AC22
| Thread Size | 5/16″ | Application | | Internal Thread Milling | |
| Threads per Inch (TPI) | 24 Threads/" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Cutting Position | INT |
| Cutting Diameter (DC) | 0.256″ | Series/List # | MTB |
| Functional Length (LF) | 39 mm | Measurement Type | Inch |
| Overall Length (OAL) | 2.52″ | Grade | AC22 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Left Hand|Right Hand |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Carbide |
| Shank Type | Round | Thread Form Type (THFT) | UN60 |
| Coating | TiAlN |
Product Features
| Family Description | SOLID THREADMILL UN THREAD | Country of Origin | Israel |
