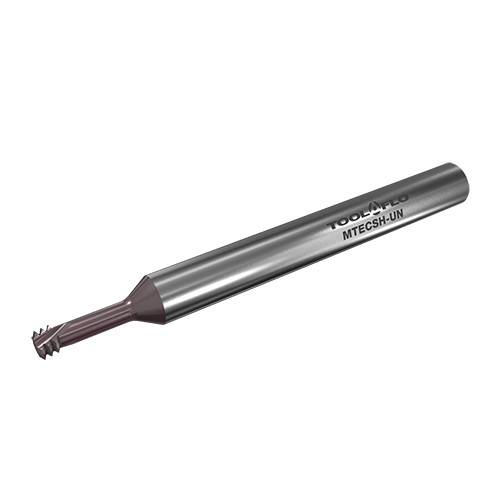

MTECS 0250C26 56UN AC22
Thread Mill; 2″ - 56 ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; AC22 ; Series MTB
| Thread Size | 2 | Pitch TPI Internal (TPI Int) | - |
| Threads per Inch (TPI) | 56 | Flute Helix Angle (FHA) | 0 Degrees |
| Thread Standard | ISO | Pitch Internal | -" |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.065″ | Cutting Position | Internal |
| Functional Length (LF) | 39 mm | Usable Length (LU) | 0.26″ |
| Overall Length (OAL) | 2-1/2″ | Series/List # | MTB |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External | Grade | AC22 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Small Diameter Solid Carbide Internal UN Profile Threading Endmills with Short Contact Area | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
