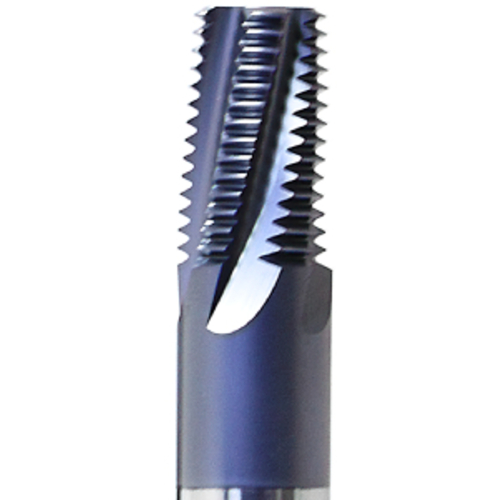

MTB 1616 E26 14 BSPT MT7
Thread Mill; RC(1/2) - 14 ; 16 mm Shank Dia. × 4.1″ OAL ; Carbide ; TiAlN ; MT7 ; Series MTB
| Thread Size | RC(1/2) | Coating | TiAlN |
| Threads per Inch (TPI) | 14 | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | BSPT | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 16 mm | Cutting Position | Internal |
| Functional Length (LF) | 26.3 mm | Series/List # | MTB |
| Overall Length (OAL) | 4.1″ | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Grade | MT7 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.625
