MTI 03012 C3 A60 MT11

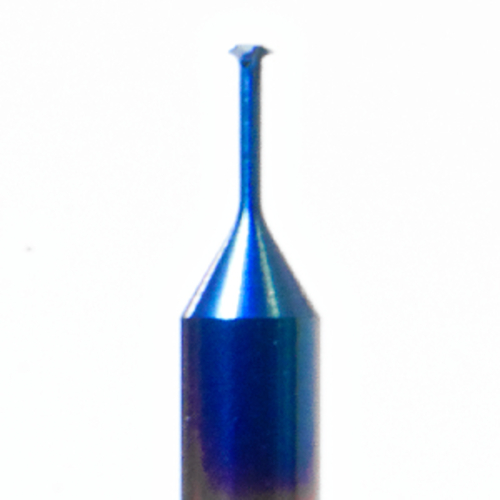

Thread Mill; 1-64|2-56|3-84|4-40|0-80|M1.6 0.35 × 0.25 mm - 0.35 mm - 72-100 ; 3 mm Shank Dia. × 1-1/2″ OAL ; Carbide ; MT11 ; Series MTI
| Thread Size | 1-64|2-56|3-84|4-40|0-80|M1.6 × 0.35 | Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 0.25 mm - 0.35 mm | Application | MINI MILL THREAD |
| Threads per Inch (TPI) | 72-100 | Applicable Material | | General Purpose | |
| Thread Standard | 60-DEG PART PROF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 1.1 mm | Series/List # | MTI |
| Functional Length (LF) | 3 mm | Measurement Type | Metric |
| Overall Length (OAL) | 1-1/2″ | Grade | MT11 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.082
