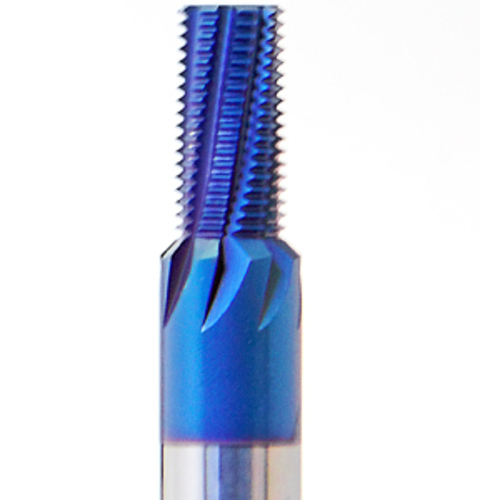

FMT 16125 H26 18 UN MT8
Thread Mill; 5/8|9/16|1(1/16)|1(1/8) - 18 ; 16 mm Shank Dia. × 4.1″ OAL ; Carbide ; TiAlN ; MT8 ; Series FMT
| Thread Size | 5/8|9/16|1(1/16)|1(1/8) | Application | FAST MILL THREAD |
| Threads per Inch (TPI) | 18 | Applicable Material | | General Purpose | |
| Thread Standard | UN | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 12.497 mm | Cutting Position | Internal |
| Functional Length (LF) | 26.16 mm | Series/List # | FMT |
| Overall Length (OAL) | 4.1″ | Measurement Type | Metric |
| Flute Count (NOF) | 8 | Grade | MT8 |
| Coolant Supply Property (CSP) | Coolant Thru | Corner Chamfer Width (CHW) | 27.43 mm |
| Coating | TiAlN | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.59
