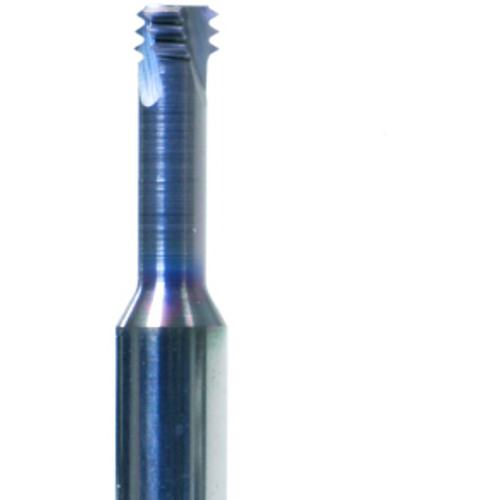

MTSH 0605 C14 28 UN MT9
Thread Mill; 2xD|1/4 - 28 ; 6 mm Shank Dia. × 58 mm OAL ; Carbide ; MT9 ; Series MTSH
| Thread Size | 2xD|1/4 | Application | MILL THREAD SOLID CARBIDE HARDCUT |
| Threads per Inch (TPI) | 28 | Applicable Material | | Cast Iron | |
| Thread Standard | UN | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 5 mm | Series/List # | MTSH |
| Functional Length (LF) | 14.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 58 mm | Grade | MT9 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.0500
