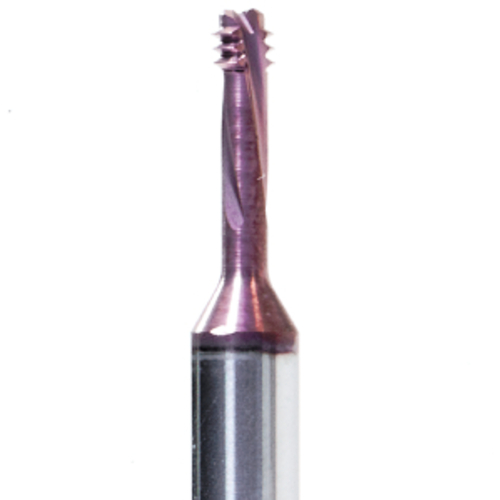

DMT 06038 C14 32 UN D MT7
Thread Mill; 2.5xD1|10 - 32 ; 6 mm Shank Dia. × 2.3″ OAL ; Carbide ; TiAlN ; MT7 ; Series DMT
| Thread Size | 2.5xD1|10 | Application | DEEP MILL THREAD |
| Threads per Inch (TPI) | 32 | Applicable Material | | General Purpose | |
| Thread Standard | UN | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 3.8 mm | Cutting Position | Internal |
| Functional Length (LF) | 14 mm | Series/List # | DMT |
| Overall Length (OAL) | 2.3″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | MT7 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coating | TiAlN |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.05
