MTI 06032 C9 A60 MT11

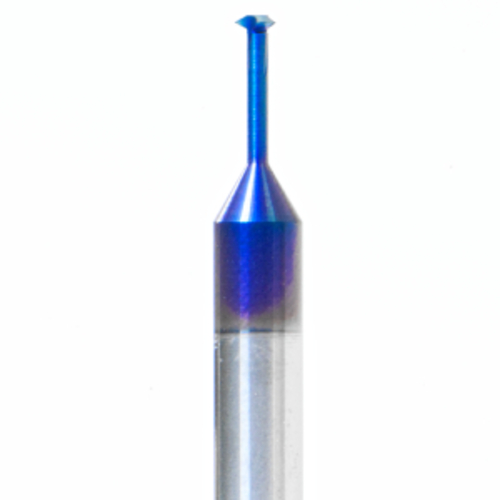

Thread Mill; 8-36|10-32|M4.0 0.7|M4.5 0.75 × 0.5 mm - 1 mm - 24-24 ; 6 mm Shank Dia. × 2.3″ OAL ; Carbide ; MT11 ; Series MTI
| Thread Size | 8-36|10-32|M4.0 × 0.7|M4.5 × 0.75 | Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 0.5 mm - 1 mm | Application | MINI MILL THREAD |
| Threads per Inch (TPI) | 24-24 | Applicable Material | | General Purpose | |
| Thread Standard | 60-DEG PART PROF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 3.2 mm | Series/List # | MTI |
| Functional Length (LF) | 9.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 2.3″ | Grade | MT11 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.05
