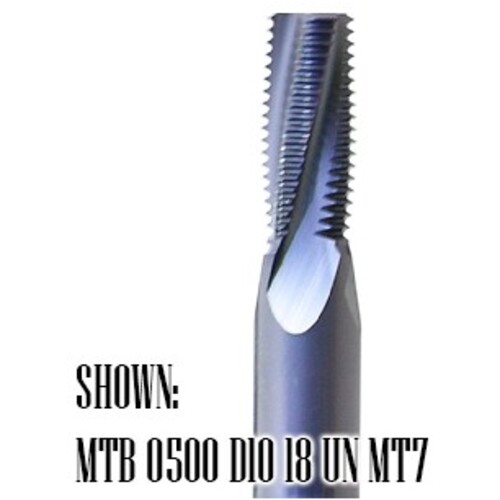

7/16-1/2-28 - Mini Thread Mill - UN Thread
Thread Mill; 7/16″-1/2″ - 28 ; 1/4″ Shank Dia. × 2-1/2″ OAL
| Thread Size | 7/16″-1/2″ | Overall Length (OAL) | 2-1/2″ |
| Threads per Inch (TPI) | 28 | Flute Count (NOF) | 3 |
| Thread Standard | UN | Usable Length (LU) | 0.56″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 1/4″ |
Product Features
| Remarks | •TiAlN coating •Run at medium to high cutting speeds •General purpose for all materials •Coolant fluid washes the chips of hole •Increased tool life | Country of Origin | Israel |
Shipping Info
Package Weight
0.05
