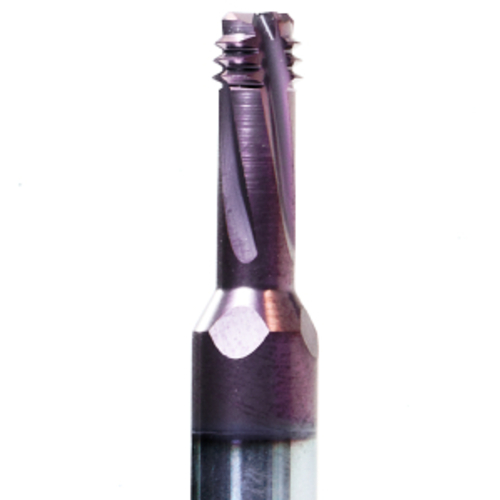

5/16-24 & 3/8-24 -áMini Drill Thread Mill - UN Thread
Thread Mill; 5/16″-3/8″ - 24 ; 8 mm Shank Dia. × 2-1/2″ OAL
| Thread Size | 5/16″-3/8″ | Overall Length (OAL) | 2-1/2″ |
| Threads per Inch (TPI) | 24 | Flute Count (NOF) | 4 |
| Thread Standard | UN | Usable Length (LU) | 0.67″ |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Inch |
| Cutting Diameter (DC) | 0.256″ |
Product Features
| Remarks | •TiAlN coating •Cancels the need for drilling the hole •Good for both blind and through holes •Short cycle time and high performance reduces machining costs | Country of Origin | Israel |
Shipping Info
Package Weight
0.09
