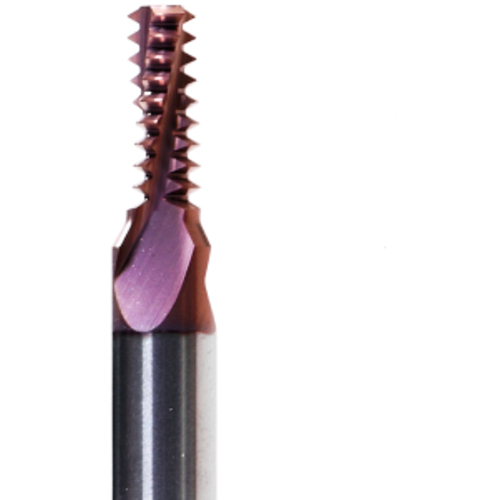

MT 0250 C05 20 UN THREAD MILL
Thread Mill; 1/4 - 20 ; 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; TiAlN ; MT7 ; Series MT
| Thread Size | 1/4 | Coating | TiAlN |
| Threads per Inch (TPI) | 20 | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | UN | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.177″ | Cutting Position | Internal |
| Functional Length (LF) | 0.48″ | Series/List # | MT |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Grade | MT7 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
