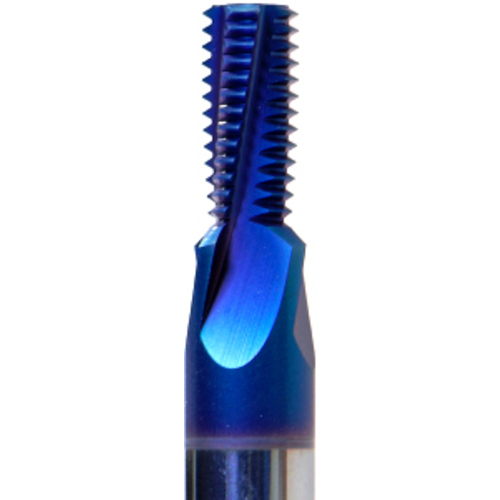

MTH 0806 C13 1.0 ISO THREAD MILL
Thread Mill; 9 × 1 mm ; 8 mm Shank Dia. × 2-1/2″ OAL ; Carbide ; MT11 ; Series MTH
| Thread Size | 9 | Applicable Material | | General Purpose | |
| Thread Pitch (TP) | 1 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 7.6 mm | Series/List # | MTH |
| Functional Length (LF) | 13.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 2-1/2″ | Grade | MT11 |
| Flute Count (NOF) | 4 | Corner Chamfer Width (CHW) | 14.3 mm |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Application | MILL THREAD SOLID CARBIDE HARDCUT |
Product Features
| Country of Origin | Israel |
