MTI 03024 C10 0.5 ISO

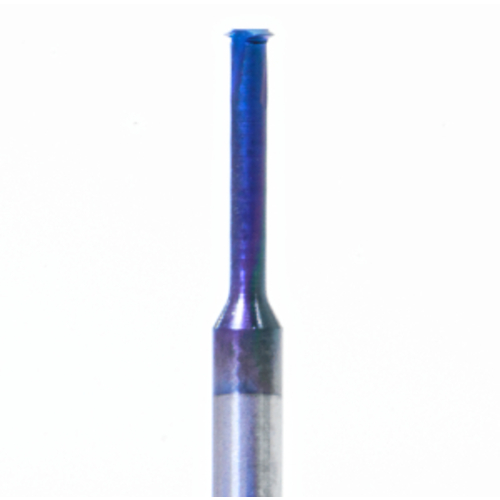

Thread Mill; M3.0 0.50 × 0.5 mm ; 3 mm Shank Dia. × 1-1/2″ OAL ; Carbide ; MT11 ; Series MTI
| Thread Size | M3.0 × 0.50 | Application | MINI MILL THREAD |
| Thread Pitch (TP) | 0.5 mm | Applicable Material | | General Purpose | |
| Thread Standard | ISO | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 2.4 mm | Series/List # | MTI |
| Functional Length (LF) | 10.7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 1-1/2″ | Grade | MT11 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.0820
