MTS 06047 C14 20 UN-L MT7

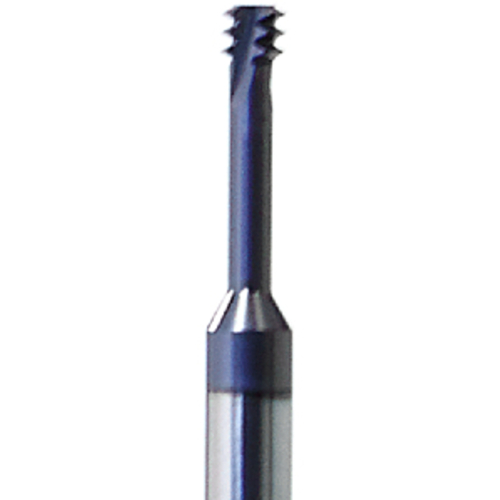

Thread Mill; 2xD1|1/4|20 - 20 ; 6 mm Shank Dia. × 4.1″ OAL ; Carbide ; TiAlN ; MT7 ; Series MTS
| Thread Size | 2xD1|1/4|20 | Coating | TiAlN |
| Threads per Inch (TPI) | 20 | Application | MINI MILL THREAD |
| Thread Standard | UN | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 4.7 mm | Cutting Position | Internal |
| Functional Length (LF) | 14 mm | Series/List # | MTS |
| Overall Length (OAL) | 4.1″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | MT7 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.05
