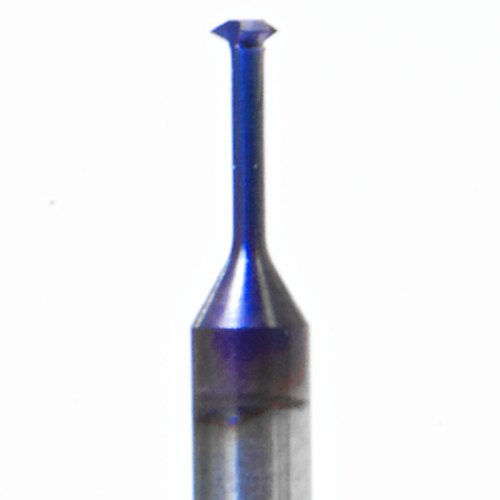

MTI 03019 C5 A60 MT11
Thread Mill; 8-32|10-24|3-56|4-48|M2.5 0.45 × 0.35 mm - 0.6 mm - 40-72 ; 3 mm Shank Dia. × 1-1/2″ OAL ; Carbide ; MT11 ; Series MTI
| Thread Size | 8-32|10-24|3-56|4-48|M2.5 × 0.45 | Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 0.35 mm - 0.6 mm | Application | MINI MILL THREAD |
| Threads per Inch (TPI) | 40-72 | Applicable Material | | General Purpose | |
| Thread Standard | 60-DEG PART PROF | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 1.9 mm | Series/List # | MTI |
| Functional Length (LF) | 5.1 mm | Measurement Type | Metric |
| Overall Length (OAL) | 1-1/2″ | Grade | MT11 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Length
1.00000
Package Width
.12000
Package Height
.12000
Package Weight
0.082
