DMTH 10092 C30 13 UN MT11

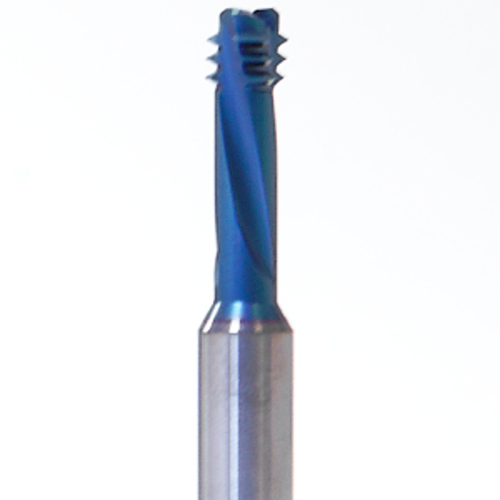

Thread Mill; 2xD1|1/2 - 13 ; 10 mm Shank Dia. × 2.9″ OAL ; Carbide ; MT11 ; Series DMTH
| Thread Size | 2xD1|1/2 | Application | DEEP MILL THREAD HARDCUT |
| Threads per Inch (TPI) | 13 | Applicable Material | | General Purpose | |
| Thread Standard | UN | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 9.2 mm | Cutting Position | Internal |
| Functional Length (LF) | 30 mm | Series/List # | DMTH |
| Overall Length (OAL) | 2.9″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | MT11 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.1700
