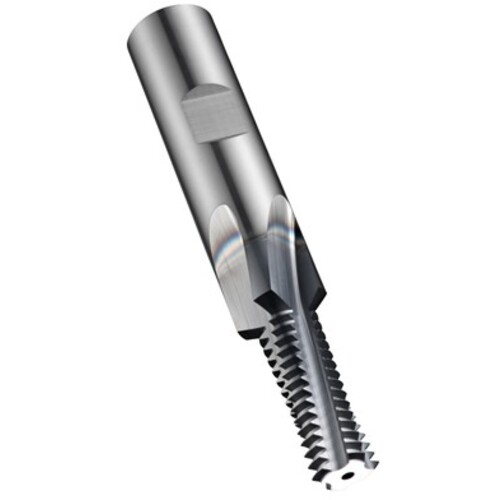

M8x1.25 Metric Carbide Spiral Flute Thread Mill 10 Degrees-AlCrN E-code # J2056.5X1.25
Thread Mill; M8 1.25 × 1.25 mm ; 10 mm Shank Dia. × 72 mm OAL ; Carbide ; AlCrN ; Series J205
Additional Tariff Surcharge of 8 %
| Thread Size | M8 × 1.25 | Coating | AlCrN |
| Thread Pitch (TP) | 1.25 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | M8 | Flute Helix Angle (FHA) | 10 Degrees |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Type | Spiral Flute |
| Cutting Diameter (DC) | 6.5 mm | Cutting Position | Internal |
| Overall Length (OAL) | 72 mm | Usable Length (LU) | 17.5 mm |
| Flute Count (NOF) | 3 | Series/List # | J205 |
| Coolant Supply Property (CSP) | Coolant Thru | Standard | DIN 6535 HB |
| Shank Type | Weldon | Length Group | 2xD |
Product Features
| Family Description | E-code # J2056.5X1.25 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
