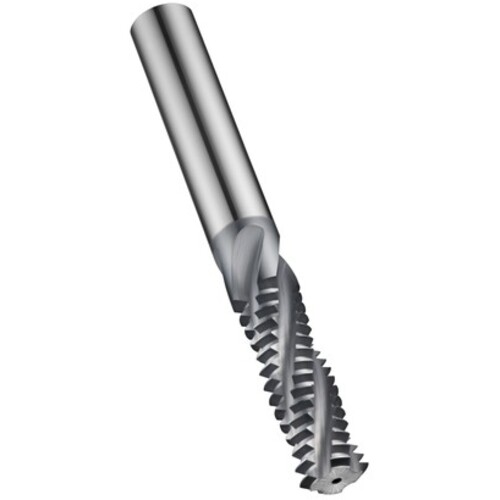

M6x1.0 Metric Carbide Spiral Flute Thread Mill 27 Degrees-AlCrN E-code # J2154.5X1.0
Thread Mill; M6 1.0 × 1 mm ; 6 mm Shank Dia. × 57 mm OAL ; Carbide ; AlCrN ; Series J215
Additional Tariff Surcharge of 8 %
| Thread Size | M6 × 1.0 | Coating | AlCrN |
| Thread Pitch (TP) | 1 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | M6 | Flute Helix Angle (FHA) | 27 Degrees |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Type | Spiral Flute |
| Cutting Diameter (DC) | 4.5 mm | Cutting Position | Internal |
| Overall Length (OAL) | 57 mm | Usable Length (LU) | 13 mm |
| Flute Count (NOF) | 3 | Series/List # | J215 |
| Coolant Supply Property (CSP) | Coolant Thru | Standard | DIN 6535 HA |
| Shank Type | Round | Length Group | 2xD |
Product Features
| Family Description | E-code # J2154.5X1.0 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
