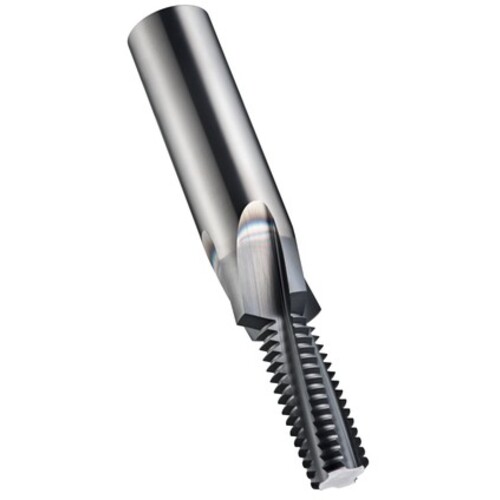

M5x0.8 Metric Carbide Spiral Flute Thread Mill 10 Degrees-AlCrN E-code # J2004.1X.8
Thread Mill; M5 0.8 × 0.8 mm ; 6 mm Shank Dia. × 57 mm OAL ; Carbide ; AlCrN ; Series J200
Additional Tariff Surcharge of 8 %
| Thread Size | M5 × 0.8 | Coating | AlCrN |
| Thread Pitch (TP) | 0.8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | |
| Thread Diameter Size (TDZ) | M5 | Flute Helix Angle (FHA) | 10 Degrees |
| Thread Standard | Metric | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Type | Spiral Flute |
| Cutting Diameter (DC) | 4.1 mm | Cutting Position | Internal |
| Overall Length (OAL) | 57 mm | Usable Length (LU) | 11.2 mm |
| Flute Count (NOF) | 3 | Series/List # | J200 |
| Coolant Supply Property (CSP) | External | Standard | DIN 6535 HA |
| Shank Type | Round | Length Group | 2xD |
Product Features
| Family Description | E-code # J2004.1X.8 | Country of Origin | Germany |
Shipping Info
Package Weight
0.19
