MT 0605 C14 24 UN MT7

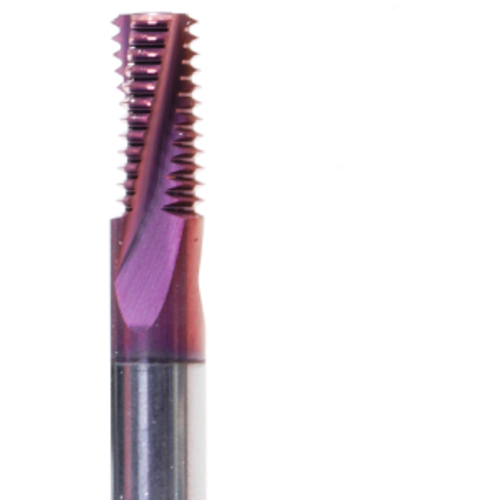

Thread Mill; 5/16 - 24 ; 6 mm Shank Dia. × 2.3″ OAL ; Carbide ; TiAlN ; MT7 ; Series MT
| Thread Size | 5/16 | Coating | TiAlN |
| Threads per Inch (TPI) | 24 | Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | UN | Applicable Material | | General Purpose | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 5 mm | Cutting Position | Internal |
| Functional Length (LF) | 14.3 mm | Series/List # | MT |
| Overall Length (OAL) | 2.3″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | MT7 |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.0500
