AMT 08074 C21 16 UN K20

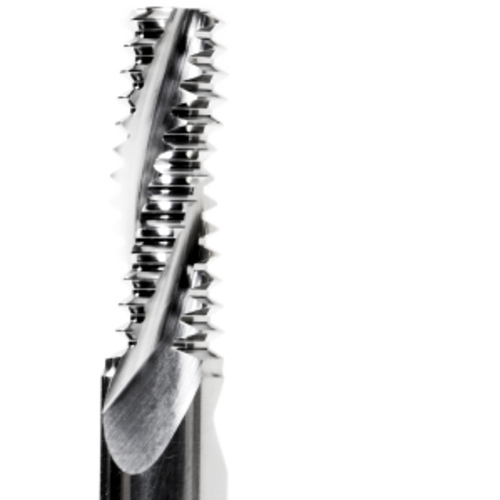

Thread Mill; 3/8 - 16 ; 8 mm Shank Dia. × 2-1/2″ OAL ; Carbide ; Uncoated ; K20 ; Series AMT
| Thread Size | 3/8 | Coating | Uncoated |
| Threads per Inch (TPI) | 16 | Application | ALUMINIUM MILL THREAD |
| Thread Standard | UN | Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 7.4 mm | Cutting Position | Internal |
| Functional Length (LF) | 21.4 mm | Series/List # | AMT |
| Overall Length (OAL) | 2-1/2″ | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | K20 |
| Coolant Supply Property (CSP) | Coolant Thru | Cutting Direction (HAND) | | Left Hand | Right Hand | |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.088
